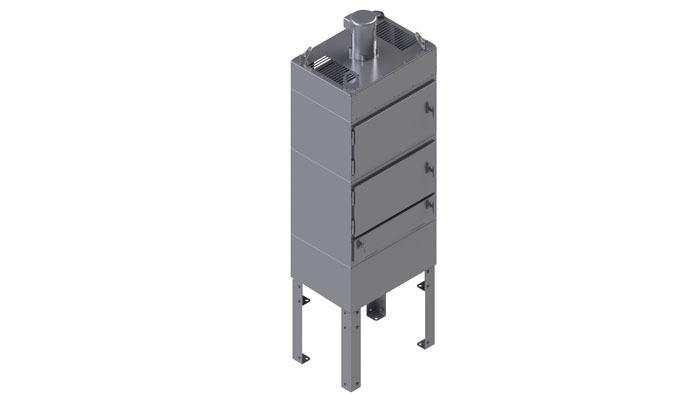

Industrial CNC Metalworking Oil Mist Collectors
The robust Stealth X Series Mist Collection Systems are designed for CNC machining and are fully modular and easily customizable.
They are engineered to handle a wide range of air processing for your CNC metalworking machining systems including:
- CNC Machining
- Grinding
- Turning
- Milling
- Drilling
- Broaching
- Honing
- Plus much much more.
Stealth Oil Mist Collection Systems
From Fine Oil Mist Collectors to Water Soluble Coolant, Parts Washers to Process Smoke, the Stealth promises to optimize almost any of your air handling requirements.
The Stealth X Series are engineered to easily control a wide range of metalworking aerosols including process dust, fumes and oil mist smoke too. Click here to download the Stealth X Series Mist Collection Brochure.
And even more important, it can help protect the health of employees during and after CNC machines are in use. They do so by reducing the amount of contaminants that are allowed to escape into the air. Click here to learn more about oil mist health hazards.
And, click here or scan the QR code below to get your Stealth Replacement Filters!
Description

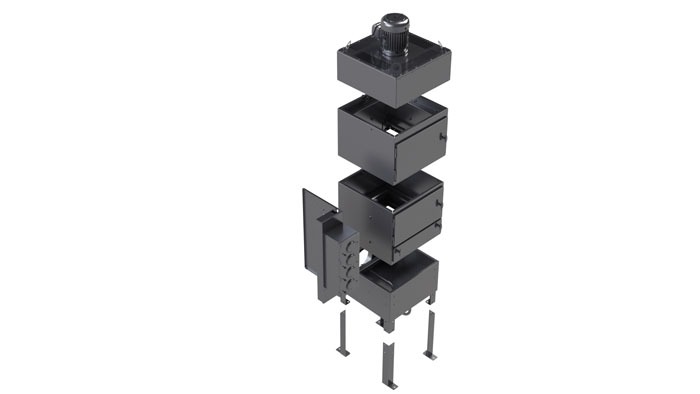

These Stealth industrial metalworking mist collectors are fully modular and easily customizable to fit your applications.
The entire product line is engineered to handle a wide range of your air processing from fine oil to water-soluble mists, parts washers to process dust and smoke.
With many possible filter configurations, our engineers are ready to help you get the ideal mist collection systems for your specific application.
Complete Mist Recovery
FYI, OSHA requires no more than 5.0 mg/m3 of mist to be exhausted. Typically less than 0.5 mg/m3 are discharged from the Stealth units...you'll get removal efficiencies up to 99.4% of all airborne contaminants.
You’ll also get the most efficient mist recovery system available because The Eliminator first stage separator uses our patented separation system to return cleaned cutting fluid back to your CNC metalworking machine for reuse.
Ask how you can get a fully configured solution to help you solve almost any of your applications while avoiding problems down the road.
Operation
Mitigation Stage
- Liquid and Solid Pre-Separation
- Proprietary multi-layer construction
- Low-pressure drop for minimum energy use
- Maximum primary filter stage life.
- Suitable for temps up to 350° F
- Washable
- Recommended for applications with high loads and fine solids
Primary Stage
- Advanced Fiberbed Technology Filters
- Can achieve HEPA level efficiencies levels with maximum liquid reclamation
- Long-life single-use filters
- Temps up to 190° F
- Low-pressure drop for minimum energy use
- Suitable for all mist and MQL applications
Final Stage
- High-Efficiency Final Filter
- Low-pressure drop for minimum energy use
- Long-life single-use
Low-pressure drop for maximum energy efficiency - Recommended for in-plant air recycling
- Multiple filter efficiencies available: 95%, 99.75%, 99.97% and others.
Features and Benefits
- Customizable: Stealth’s modular design makes it easy to customize units to optimize almost any of your metalworking air handling applications.
- Now Approved & Accredited by GM, Ford & FCA including Stealth replacement filters.
- Efficient Operating Cost: High-efficiency motors reduce long-term operating costs. An optional VFD for blower motor control lowers your energy costs while maximizing effectiveness.
- Large Range of Filter Media: Filtra-Systems' range of filter media helps easily process your most demanding metalworking application requirements.
- 99.4% Efficiencies: Proprietary filter construction with efficiencies as high as 99.4%.
- OSHA Clean Air Standards: We are proud to say the Stealth X Series of Metalworking Mist Collectors exceed the Occupational Safety and Health Administration (OSHA) Clean Air Standards.
- Lower Lead Times: Stocked assemblies get you lower lead times.
- Maximize Efficiency: Customized options maximize your application efficiency.
- Expedited Design and Delivery: Standard control configurations minimize your design time and delivery.
- Mist Return Options: Liquidized mist return options help you determine the best source for delivering recaptured liquid to your machine.
- Optional Silencers: Optional silencers reduce DBA ratings in sensitive sound areas.
- Reduced Installation Cost: Producing air cleanliness capable of being discharged internally to a facility, reducing installation cost and preventing roof penetrating discharge hoods.
- Range of Capabilities: From individual machines to complete central system capabilities, as low as 250 cfm to as much as 32,000 cfm.
- Cleaner Environment: Provides a cleaner work environment for all your facility employees and patrons.
- Easy to Access: Conveniently access filter compartments for easy filter changes resulting in less downtime.
- Wide Selection: A variety of filtration media can solve all your air filtration requirements.
- Internal Air Discharge: High air purity levels provide you with internal air discharge in the plant.
- Leakproof: Custom-designed leakproof ductwork assembly.
- Control Options: Stand-alone control options are available.
Industry Applications
Our Stealth Metalworking Oil Mist Collection Systems can be used in a variety of different applications including:
Not sure what type of filtration you need or have questions about your equipment?
Let our team of experienced applications engineers review your process and make recommendations that will be best for your application, facility and business.
